PANASONIC High-Precision SMT Nozzle for Micro-Component Assembly with Anti-Static Coating

Detail Information

Product Description

Detail Information

Highlight:

High-Precision SMT Nozzle

Micro-Component Assembly SMT Nozzle

Anti-Static Coating Pick-and-Place Nozzle

Product Description

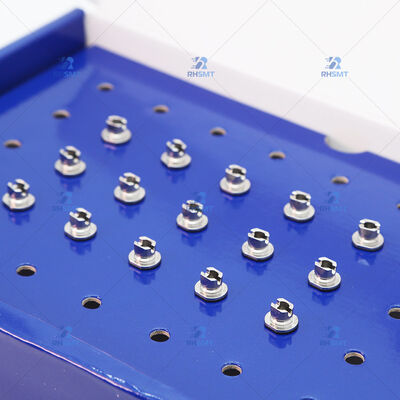

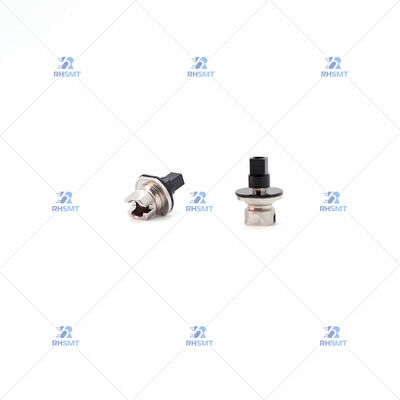

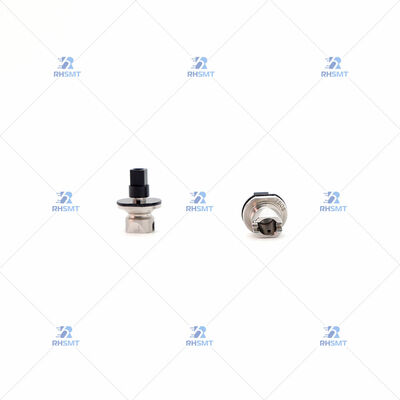

The PANASONIC Nozzle 750S-MTKU006069AA is a premium SMT (Surface Mount Technology) pick-and-place nozzle engineered for high-precision electronics assembly. Designed exclusively for Panasonic's advanced SMT machines, this nozzle delivers exceptional component gripping stability, ultra-accurate placement, and long-lasting durability—critical for optimizing production efficiency in high-volume SMT lines.

Core Specifications

Model Number	PANASONIC Nozzle 750S-MTKU006069AA
Type	SMT Pick-and-Place Nozzle (Vacuum-Type)
Compatible Component Sizes	01005 (0.4x0.2mm) to 0603 (1.6x0.8mm)
Nozzle Tip Material	Tungsten Carbide (wear-resistant, high hardness)
Coating	Anti-Static, Anti-Stick (PTFE) Coating
Vacuum Pressure Range	0.02-0.08 MPa (optimized for micro-component gripping)
Operating Temperature	0°C-45°C (SMT workshop compatible)
Compatibility	Panasonic NPM-D3, NPM-W2, CM602, CM402 SMT Machines

Key Features & Benefits

Micro-Precision Component Handling: Precision-machined tungsten carbide tip with ±0.002mm dimensional accuracy for reliable gripping of ultra-small 01005 components
Anti-Static & Anti-Stick Design: Specialized coating eliminates static buildup to prevent component adhesion or electrostatic damage
Optimized Vacuum Airflow: Aerodynamic design ensures consistent vacuum pressure distribution for high-speed operation
Extreme Durability: Tungsten carbide tip resists wear with service life 2x longer than standard nozzles
Seamless SMT Machine Integration: Drop-in replacement for original Panasonic nozzles with no additional adjustments required
Low Maintenance: Smooth surface finish minimizes residue buildup and reduces cleaning requirements
Consistent Placement Accuracy: Rigid structural design ensures placement accuracy within ±0.01mm

Application Scenarios

This high-precision nozzle is ideal for various SMT applications including high-volume production lines for smartphones, tablets, automotive electronics, medical devices, IoT equipment, LED lighting, and semiconductor packaging.

Technical Support & Warranty

Includes 1-month warranty covering manufacturing defects, with dedicated SMT technical assistance and 100% genuine Panasonic replacement guarantee.

Why Choose PANASONIC Nozzle 750S-MTKU006069AA?

Engineered specifically for Panasonic's industry-leading pick-and-place machines
Specialized for micro-component handling with unmatched reliability
Reduces component waste and rework costs for faster ROI
Global availability with fast lead times to minimize production downtime
Complies with ISO 9001 and SMT industry standards
